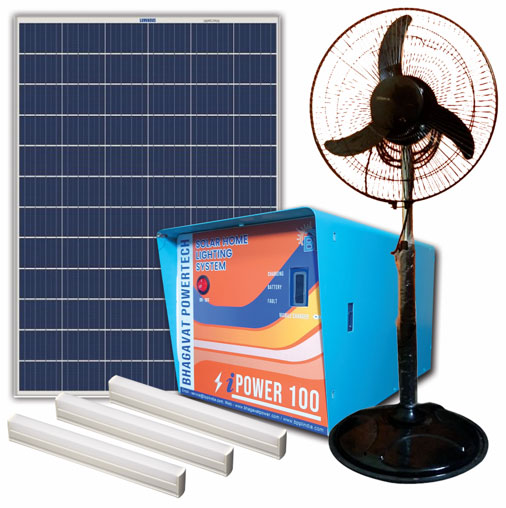

Specifications of iPower 100 Solar Home Lighting System

The specifications of a 100-watt home lighting solar system with solar light price is mentioned below.

Particular Description
Solar PV Module 105 Watt
Solar Charge Controller 10 Amp/ 12 V
Solar Battery SMF 42 AH/ 12 V
Other Components DC Charging Option & over voltage protection and low battery cut off. Wire & other Accessories
Warranty 1 Year for Complete System
Features of Home Lighting System

A home lighting system is an efficient and economical solution to home lighting. Powered by sunlight, the system provides a consistent and reliable energy supply. The components present in the kit generate electricity in the daytime and store it to use whenever you want to light up the space.

Features of Solar Lighting System

1. Components: Our solar DC home lighting system comes with several efficient solar gadgets, Like Solar Panel, LED Lamps (5 Watt),and a Charge Controller. Besides, you also get a mobile charger and a fan with the system.

2. Backup Time: The Battery provides a backup that can be utilized for the entire night. The system offers a low battery cut, polarity protection and short circuit protection. .

3. Charging Duration: The battery gets charged in the daytime in around 4-6 hours and works throughout the night to power all the devices. And During day time it works on SolarPower. It has features to prevent overcharging and also protects form deep discharge.

4. Warranty: The solar home lighting systems come with a warranty of 1 year for the complete system.

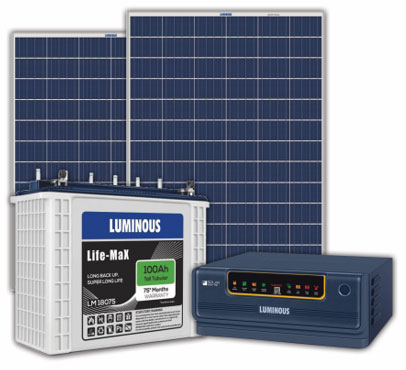

Specifications of Solar Home Solution- (COMBO 1400)

Solar Off Grid Combo - NXG 1450/12V 1100 VA (BIS Certified)

  • Capacity (VA): 1100VA
  • Operating Voltage 90V-290V
  • Max supported panel power: 12V up to 1100 Wp
  • Charge Controller Rating - 60 Amp
  • Supports single battery
  • 24 Month Warranty
  • BIS certified as per IS/IEC standards which is mandatory for all solar inverters
  • 3 User Settable Saving Modes: Solar Mode, Solar+Grid Mode and Grid+Solar Mode
  • View daily solar generation data in all new LCD display screen
  • Power savings of 1.5 - 3 units per day* with the help of Intelligent Solar Optimization Technique (iSOT).
  • 120 Ah Rated Capacity @ C10, 12V
  • Warranty - 36 Months
  • Tubular plate Technology - Next generation tall tubular battery with better charge acceptance and longer backup
  • No of Batteries in Combo - 1
  • Capacity - 165W / 12V, Polycrystalline Solar Panel
  • Voltage: Voltage at Max Power (Vmp) - 18.65V, Open Circuit Voltage (Voc) - 22.84V
  • Current: Current at Max Power (Imp) - 8.85A, Short Circuit Current (Isc) - 9.55A
  • 25 years performance warranty
  • No of Panels in the Combo – 4
  • The given cost doesn’t include Product Installation. For details related to Installation, please check in Installation Help section or contact our Sales Support at 18001030577

The specifications of a 330-watt solar system with solar Inverter price is mentioned below.

Solar Inverter - NXG 850

  • Capacity - 500VA Operating Voltage 90V-290V
  • Max Supported Panel Power - 12V upto 500 Wp
  • Charge Controller Rating - 30 Amp
  • 24 Month Warranty Pure Sine Wave Solar Inverter
  • 150 Ah Rated Capacity @ C10, 12V
  • Warranty - 72 Months
  • Tubular plate Technology - Next generation tall tubular battery with better charge acceptance and longer backup
  • No of Batteries in Combo - 1
  • Capacity - 165W / 12V, Polycrystalline Solar Panel (02 Nos)
  • Voltage: Voltage at Max Power (Vmp) - 18.65V, Open Circuit Voltage (Voc) - 22.84V
  • Current: Current at Max Power (Imp) - 8.85A, Short Circuit Current (Isc) - 9.55A
  • 25 years performance warranty
  • No of Panels in the Combo – 2
